Re: [BaadAssGremlins] Tach question

["Eddie Stakes" <eddiestakes@xxxxxxxxxxxxxxxxxxxx>]

Eh, from the dark recesses of my office comes this, of whihc you just
happened to catch me here on New Year's Eve. Speaking of tachometers, I am
dropping a factory tachometer from a 1977 Hornet AMX on fee-bay tonight
along with other things, but part number appears to be 3690402 (really faded

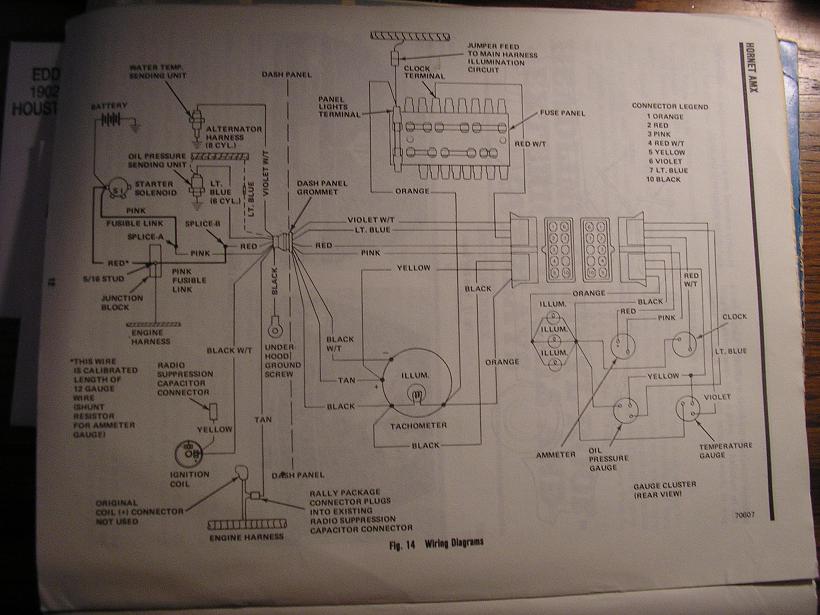

on back). As for hookup, this is factory schematic from the 1977 AMC
Supplement #3; Body, Hornet AMX. I have left the photo a little purposely
big for detain as light ain't best here in office. Bart, you might consider
saving this photo to your site somehow, as chances are someone down the line
will ask about wiring a tach to their Gremlin or Hornet someday and could
reference this jpeg. Happy New Years ya'll,
Eddie Stakes'
Planet Houston AMX
713.464.8825
eddiestakes@xxxxxxxxxxxxxxxxxxxx
www.planethoustonamx.com
email reply currently 5-9 days
8-19 day reply times, just call!
----- Original Message -----
From: "Robert" <baddassgremlin@xxxxxxx>
To: <BaadAssGremlins@xxxxxxxxxxxxxxx>
Sent: Monday, December 31, 2007 12:01 PM
Subject: [BaadAssGremlins] Tach question


> Happy Holidays Everyone ! !  Question on the tachometer wiring for a
> factory tach out of a 77 AMX. I am finally getting my 73 Gremmy back
> together and I am putting the instrument cluster in the Gremmy that I
> got out of a 77 AMX (3 pod w/tach). The tach has a part number 3690403,
> labeled for a V8. I need to know what wires hook up where on the coil.
> The back of the tach has the "neg." terminal with a black w/white
> tracer wire attached to it, and the "pos" terminal has a double wire
> set up attached to it with a yellow wire and a brown wire, both
> connected to single factory eye terminal. Why the double wire set up???
> Where does that yellow and/or brown wire hook to?? I could not find a
> wiring diagram for that 77 AMX, so hopefully someone has some input.
> Eddie, if you think there is some info on your site, let me know and
> I'll search the site for the info. Thanks again everyone. Bob in MN.
>
>
>
>
