[BaadAssGremlins] Re: L/R Front Side Marker lights, 72 Gremlin
[Date Prev][Date Next][Thread Prev][Thread Next][Date Index][Thread Index]

[BaadAssGremlins] Re: L/R Front Side Marker lights, 72 Gremlin



Actually John, quite easy to find. AMC had a wonderful system that other
automakers would later copy. What is confusing however were numbers that
would sometimes be superceded later on same part. For instance, here is a

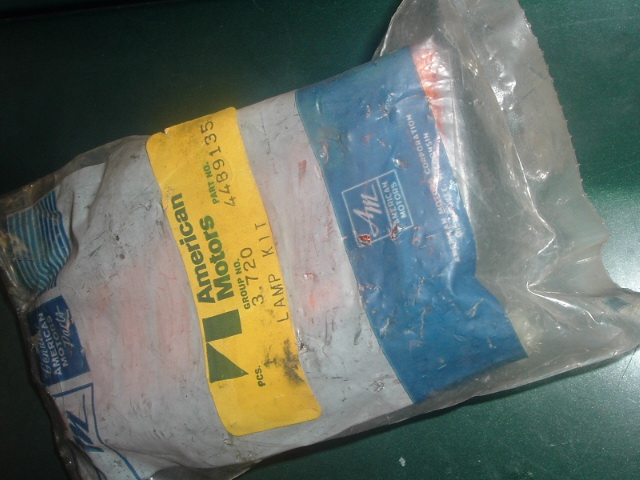

"lamp" (which is what it is, as it took a bulb) for the 70-72 01-40 Series.
This nOS one laying in my garage is Group #3.720 and AMC Part number
4489135. However, there were FOUR different part numbers that were before
this.
3212453
3636233
3631115
3633025

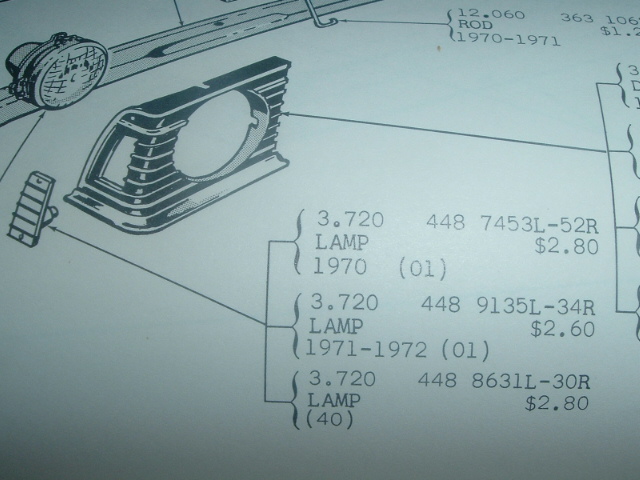

So if you go by your big ass 67-72 book, (or a AMC Collision Parts Manual)
it will appear as:
448-7453L (for left) and 52R (for right side) (4487452) for 1970 01 Series
(Hornet)
448-9135L (left) and 34R (right side) for 71-72 01 Series Hornet
448 8631L (left) and 30R (right side) for 70-72 40 Series Gremlin

This 'streamlined' if for AMC dealerships who could then look up one part
number, but 'by the book guys' could also look up the other numbers in the
network. Sort of the opposite now with computers, few people will reference
books at auto parts stores, if not in computer will gladly tell you N/A.

These lenses NOS for any of about usually command a low of about $30 to a
high of $60 depending on who/which vendor you are dealing with. Now armed
with the numbers you need, you can email a bunch of them, or call them, off
my vendors list to see if anyone can hook you up.
Eddie Stakes'
Planet Houston AMX
713.464.8825
eddiestakes@xxxxxxxxxxxxxxxxxxxx
www.planethoustonamx.com
email volume is currently
light; 4-7 day reply time;
call if important
----- Original Message -----
From: "John W Rosa" <JohnRosa@xxxxxxxxxxxxxx>
To: <BaadAssGremlins@xxxxxxxxxxxxxxx>
Sent: Monday, August 29, 2005 1:47 PM
Subject: RE: [BaadAssGremlins] L/R Front Side Marker lights, 72 Gremlin


> As usual, I can't find them in my 67-72 parts book.
> One page calls something a lens, the next time it's
> A reflector...and the next...???
>
> Whoever came up with the organization of these things
> should have been shot.
>
> John
>
>
>
> -----Original Message-----
> From: BLDFW
>
> Does anyone have a parts manual they can look up a
> number for me?
>
> It's for the right and left front side marker lights
> on a 72 Gremlin.  They insert into the sides of the
> wrap around grill.  Any insight would be appreciated.
>
> Hey, if you got a set for sale, I'd be interested.
>
> Thanks.
>
>
> Bill
> Dallas, TX
> '72 Gremlin (gutted and ready for paint)
> '72 Olds Custom Cruiser Wagon (recently restored)
> '71 Mark III
> '70 Cadillac Convertible
>
>
>
>
>
> Yahoo! Groups Links
>
>
>
>
>
>


------------------------ Yahoo! Groups Sponsor --------------------~-->
Get fast access to your favorite Yahoo! Groups. Make Yahoo! your home page
http://us.click.yahoo.com/dpRU5A/wUILAA/yQLSAA/YtqqlB/TM
--------------------------------------------------------------------~->


Yahoo! Groups Links

<*> To visit your group on the web, go to:
    http://groups.yahoo.com/group/BaadAssGremlins/

<*> To unsubscribe from this group, send an email to:
    BaadAssGremlins-unsubscribe@xxxxxxxxxxxxxxx

<*> Your use of Yahoo! Groups is subject to:
    http://docs.yahoo.com/info/terms/


Attachment: ebay stuff 226.jpg
Description: JPEG image

Attachment: ebay stuff 227.jpg
Description: JPEG image

Attachment: ebay stuff 228.jpg
Description: JPEG image
